LED Screen Mapping
Engineered for Pros
Design pixel maps, calculate power loads, configure data wiring, and generate print-ready deliverables — all in your browser, all for free.
From blank screen to full documentation
MapMyLED guides you from an empty canvas to export-ready project docs in four steps.
Choose your LED product
Select from a library of real manufacturer tiles or add your own with custom specs.
Design your layout
Drag to build the grid, delete tiles for custom shapes, and add half-tiles for odd edges.
Configure wiring
Assign data and power wiring patterns, choose your processor, and validate port loads.
Export deliverables
Generate raster maps, wiring diagrams, and print-ready PDFs for your entire team.
Built for the way you work
Every tool was designed around real LED production workflows — nothing extra, nothing missing.

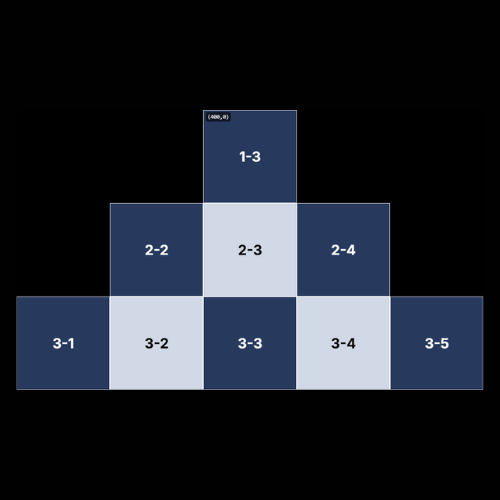

Custom & Half-Tiles
Build pixel maps for any shape — non-rectangular walls, curved surfaces, and odd configurations. Half-tiles on any edge.

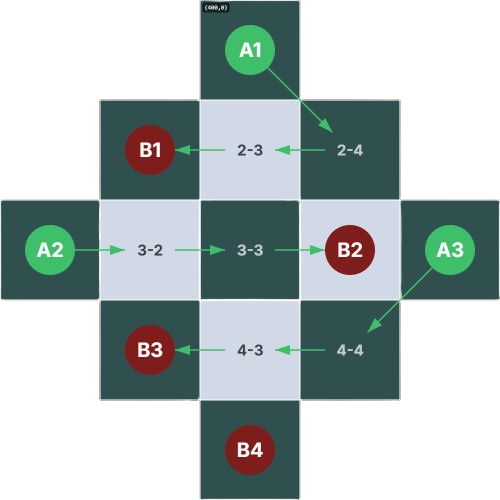

Advanced Wiring Paths
Visualize data and power wiring with serpentine, left-to-right, top-down, and fully custom routing patterns.
Processor Port Assignment
Auto-assign LED tiles to ports on Brompton, Novastar, and Helios processors with capacity validation.
Raster Map Export
Generate pixel-perfect raster maps for any media server — export as full image or sliced by HD, 2K, or 4K resolution.
Power & Data Calculator
Know exactly how many tiles fit per circuit and per data port — for any voltage, phase, or processor model.
Project Save & Share
Export your entire project as a single JSON file. Import on any device, share with your team, or archive for later.
Tile Colour Coding
Colour-code individual tiles to represent zones, groups, or physical cabinet regions for clear documentation.
Print-Ready Deliverables
Generate branded PDF deliverables with wiring diagrams, port maps, and power schedules in one click.
Multi-Screen Projects
Manage multiple screens within a single project — each with its own dimensions, wiring, and settings.
Four tools, one platform
Pixel Map Designer
The core of MapMyLED. Build your LED wall tile-by-tile, assign wiring patterns, colour-code zones, and see your complete layout at a glance. Supports rectangular and non-rectangular walls with half-tile edges.
- Multi-screen project management
- Serpentine & custom data wiring
- Power circuit visualisation
- Raster map & PDF export
Power & Data Calculator
Select your LED product and processor, set your circuit voltage and amperage, and instantly see how many tiles are safe per circuit and per data port. Prevents overloads before the gear is even shipped.
- 110V / 208V / 230V support
- Single and three-phase
- Brompton, Novastar, Helios
- Configurable safety margins
Used by LED professionals
"MapMyLED cut our pre-production documentation time in half. The raster map export alone saves us hours per show."
"Finally a browser-based tool that actually understands how LED processors work. The port assignment is spot on."
"I use it for every quote I send — the power calculator gives clients exact circuit requirements before we even spec the job."
